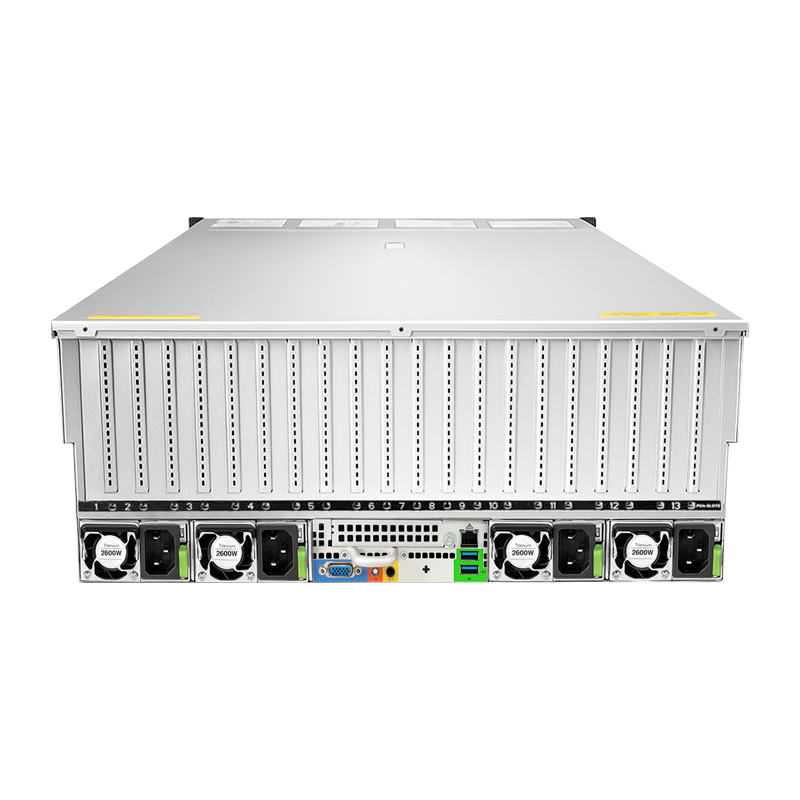

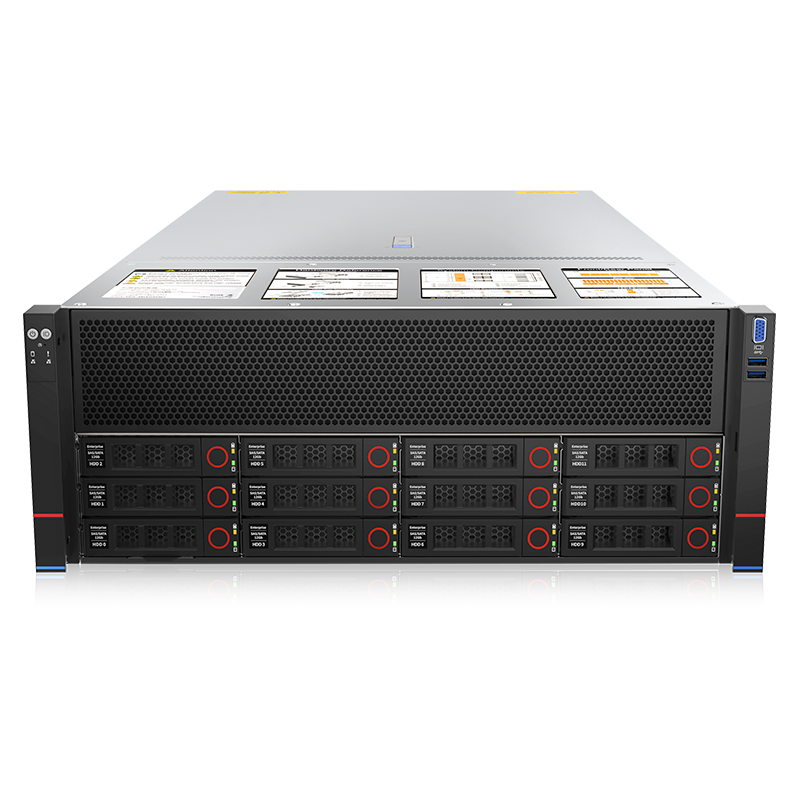

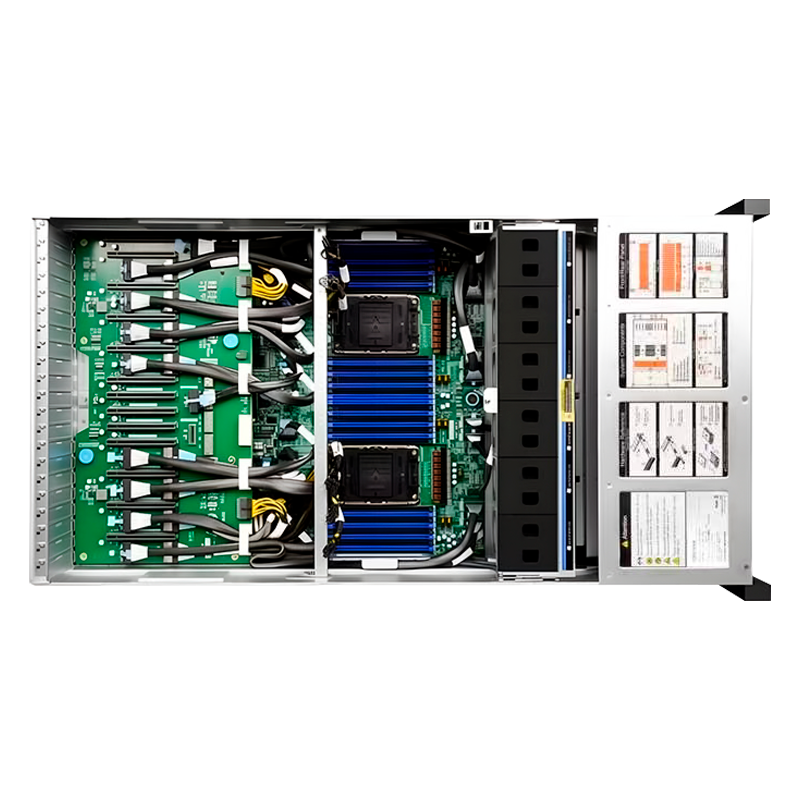

HG8480G Xeon Server
The Shuju Hongxin HG8480G is an artificial intelligence computing server developed based on Intel's latest Eagle Stream platform, which has powerful computing power and ultra-high elastic scalability. It supports multiple CPU-GPU direct connection topologies and meets the application needs of various AI business scenarios.
Function Summary
Super performance, online performance
Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor, providing excellent computing performance, easily handling high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 32 DDR5 4400/4800/5600MHz; Supports single storage capacity of 16GB, 32GB, 64GB, 128GB and other specifications of memory
High speed storage with multiple expansion options
Front facing hard drives: 12 3.5-inch SAS/SATA/NVMe hard drives, built-in hard drives: 2 2280/22110 size M.2 (SATA/NVMe), meeting high requirements for storage expansion and high-speed data transfer.
Efficient heat dissipation and precise temperature control
Effectively reducing temperature, ensuring long-term stable operation of the system, improving overall performance, and optimizing energy efficiency.
Super performance, online performance
Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor, providing excellent computing performance, easily handling high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 32 DDR5 4400/4800/5600MHz; Supports single storage capacity of 16GB, 32GB, 64GB, 128GB and other specifications of memory
Specifications
| Chipset | |
| Processor | Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor |
| Heat dissipation | |
| Memory | Supports 32 DDR5 4400/4800/5600MHz; Supports single storage capacity of 16GB, 32GB, 64GB, 128GB and other specifications of memory |
| Storage |
Front end hard drives: 12 3.5 "SAS/SATA/NVMe hard drives Built in hard drives: 2 x 2280/22110 size M.2 (SATA/NVMe) |
| PCle | Supports 13 PCIe x16 expansion slots (OCP3.0 card is mutually exclusive with one PCIe 5.0 standard single width slot) |
| Network | Optional 2 10G RJ45 network interfaces |
| Power supply | CRPS 2000W Platinum Four Electric |
| Port |
Front end: 1 VGA interface, 2 USB 3.0 interfaces Rear: 1 VGA port, 1 management network port, 2 USB 3.0 ports |
| Operating system |
Support Microsoft ® Windows Server ®、 Red Hat ® Enterprise Linux ®、 SUSE ® Linux Enterprise Server、 CentOS ®、 Ubuntu ® |
| Size | 850 x 444 x 176.5mm（D*W*H） |
