HW3510 Ultra Workstation
Shuju Red Core HW3510 Ultra is equipped with Intel ® Z890 chipset, supporting the latest Intel ® Core ™ Ultra second-generation processors provide excellent computing performance and efficient data processing capabilities. Supports up to 192GB DDR5 memory and has powerful storage and expansion capabilities. Supports high-frequency memory, suitable for large-scale data processing, high-performance computing, and virtualization applications. Through PCIe 5.0 and multiple storage interfaces, the HW3510 Ultra can meet the needs of high-end workstations and servers. Equipped with the latest 5G network interface and Wi Fi 7 wireless technology, ensuring high-speed and stable network connectivity.
Function Summary
Super performance, Ultra online
Supports Intel. Core Ultra second-generation processors, providing excellent computing performance and easy handling of high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 4 DDR5 memories, with a maximum frequency of 6400 MT/S and a maximum capacity that can be expanded to 192GB, perfectly adapting to memory intensive workloads and large-scale parallel computing requirements.
High speed storage with multiple expansion options
Supports 4 M2 hard drives, 2 3.5-inch hard drives, and provides multiple PCle slots to meet high requirements for storage expansion and high-speed data transfer.
Efficient heat dissipation and precise temperature control
Supporting both air-cooled and liquid cooled cooling systems, effectively reducing temperature, ensuring long-term stable operation of the system, improving overall performance, and optimizing energy efficiency.
Super performance, Ultra online
Supports Intel. Rem Ultra second-generation processors, providing excellent computing performance and easily handling high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 4 DDR5 memories, with a maximum frequency of 6400 MT/s and a maximum capacity that can be expanded to 192GB, perfectly adapting to memory intensive workloads and large-scale parallel computing requirements.
Specifications
| Chipset | Intel® Z890 |
| Processor | Support Intel ® CoreTM Ultra 2nd Generation Processor |
| Heat dissipation | Support air cooling/liquid cooling |
| Memory | Supports 4 DDR5 memory sticks, with a frequency range of 6400-4800 MT/s and a maximum support of 192GB |
| Storage | Hard drive: supports 4 M2 hard drives, expandable 2 3.5-inch hard drives. Interface: onboard 6 SATA 6Gb/s interfaces for expansion, 4 M.2 interfaces |
| PCle | Supports 1 PCle 5.0 x16 slot, 2 PCle 4.0 x16 slots (running in X4 mode), and 1 PCle 4.0 x1 slot |
| Network | 1 Realtek ® 5G RJ45 network interface, 1 Intel ® Wi-Fi 7 |
| Power supply | Supports module power supplies such as 750W/1250W/2000W |

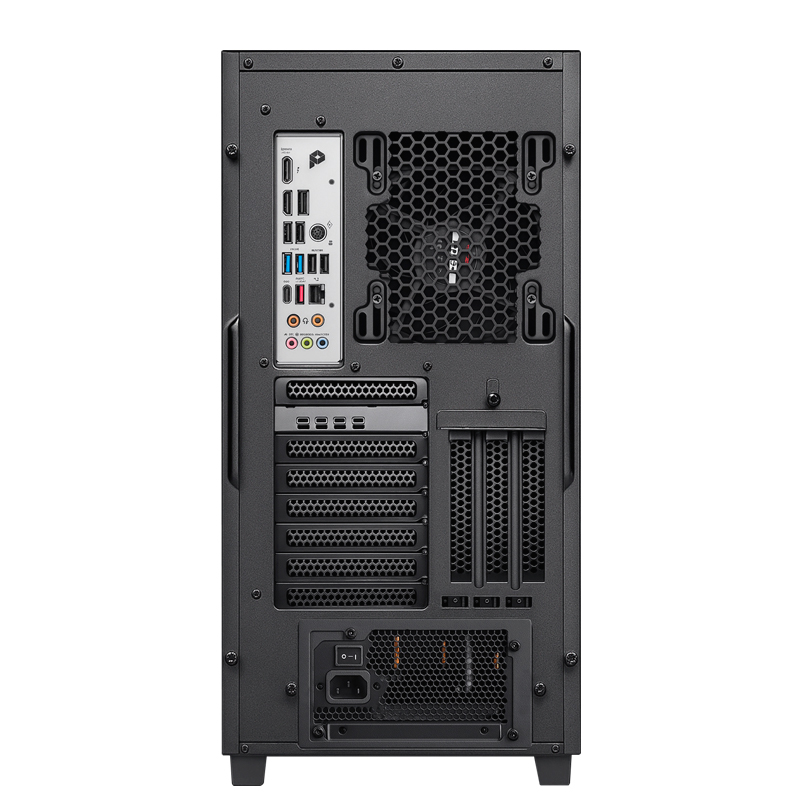

| Port | Front end: 2 USB 3.2, 1 audio interface, 1 3.5mm headphone jack Rear end: 1 DP, 1 HDMI TM, 1 Thunderbolt TM 4 40Gbps (Type-C), 3 audio sockets, 4 USB 2.0, 2 USB 3.0, 1 USB 3.1, 1 Type-C, 1 5G network port |
| Operating system | Support Microsoft Windows Server and Linux operating systems (including mainstream distributions such as Ubuntu and CentOS) |
| Size | 442 x 250 x 518 mm (L*W*H) |
