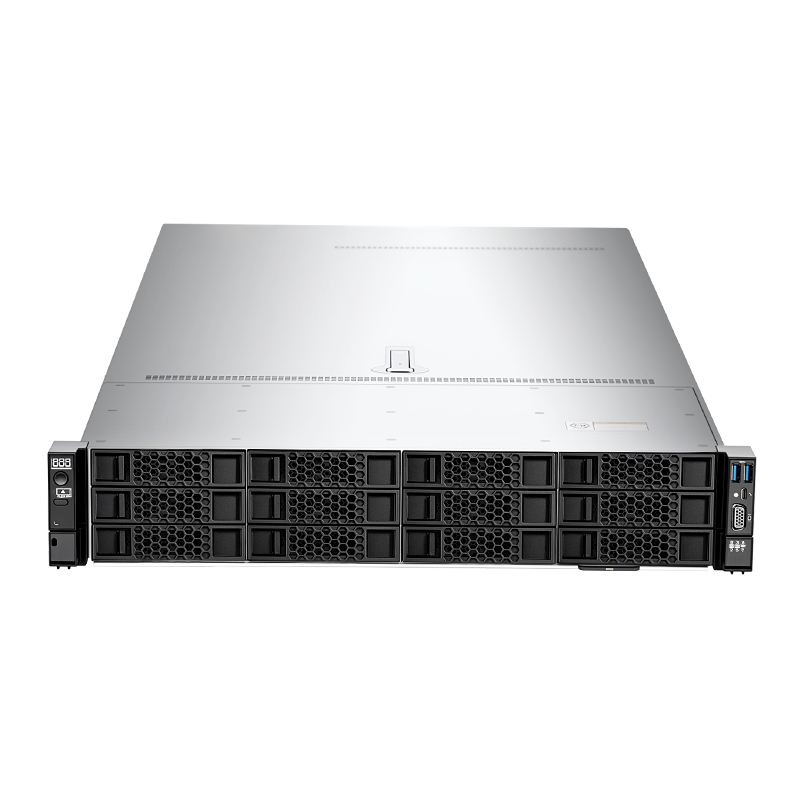

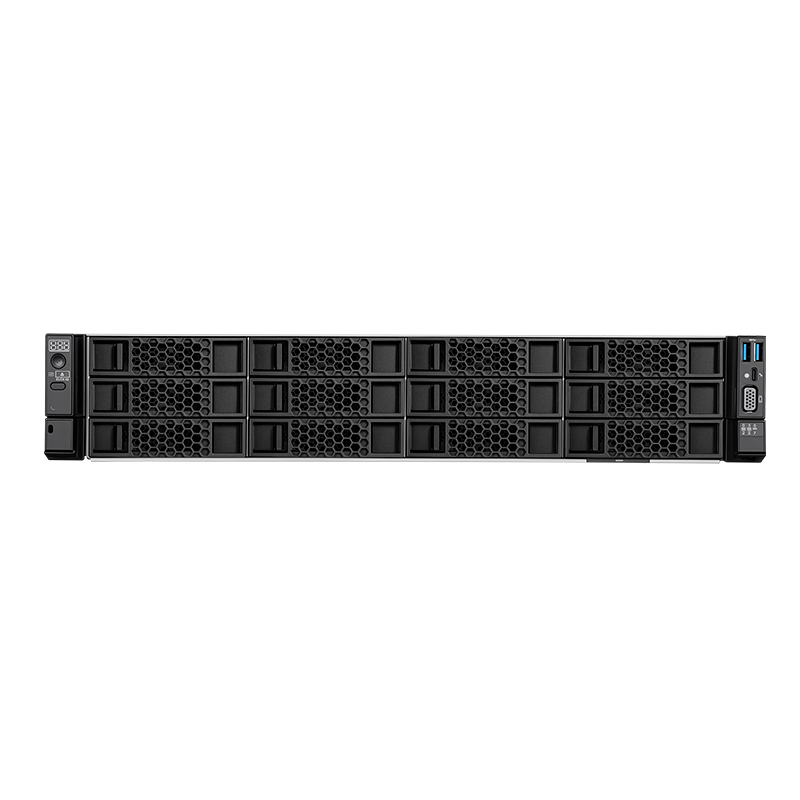

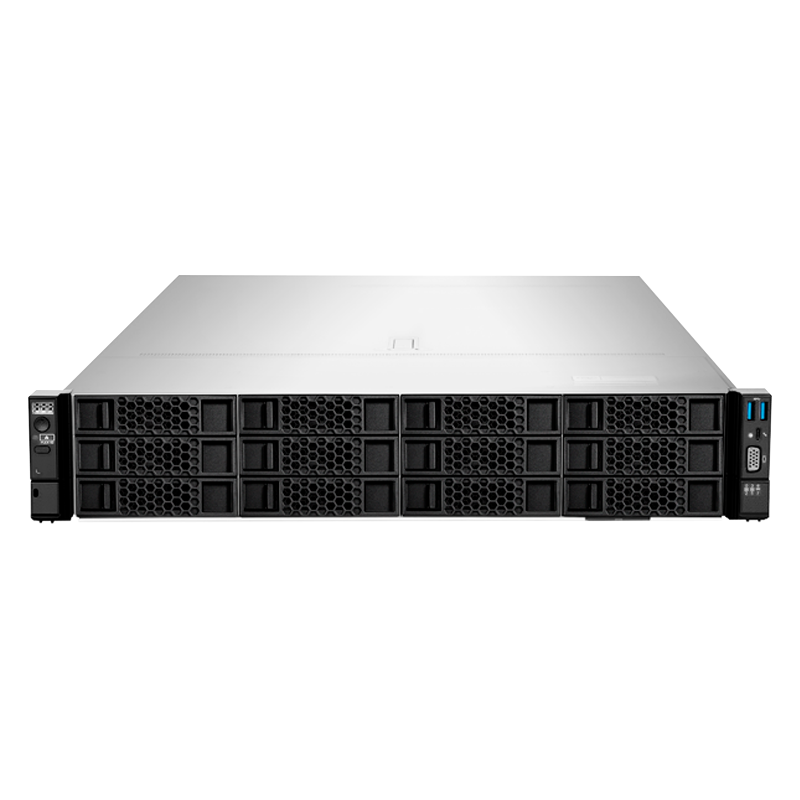

H6520 rack mounted server
H6520 is designed for SDS, VDI, CDN, virtualization, big data, databases, cloud scenarios, accelerated computing inference, small businesses, OA, and web application industries
A new generation of 2U2 rack servers with wide applications has been launched to meet the needs of enterprise or telecommunications business applications and other complex workloads.
Integrated DEMT intelligent power management, optional DateCenterManage full lifecycle management software, can effectively reduce operating costs and improve investment returns.
Function Summary
Powerful performance, flexible configuration
Based on the fourth/fifth generation Intel Xeon Scalable processors, it supports the highest specification of 385W CPU and 32DIMM DDR5 memory, with an overall performance improvement of up to 50%, providing super powerful computing power. Supports PCIe 5.0 protocol, equipped with 17 standard PCIe expansion slots, flexible configuration, PCIe bandwidth increased by 100%, achieving high-speed interconnection.
High speed flash memory, diverse storage configurations
Provide multiple high-speed flash memory configuration options: ① 34NVMe U.2 SSD hard drive, bringing ultra fast performance; ② 36E1. S SSD hard drive, with smaller size and higher density; ③ 45 * SAS/SATA SSD hard drive, with more disk space and higher cost-effectiveness, meets different storage needs.
Smart energy saving, optimizing energy efficiency
Adopting the heat pipe remote heat dissipation technology, the heat dissipation is reliable, the temperature adaptability is stronger, and the single radiator capacity is increased by 50%. Intelligent perception of business, dynamically adjusting CPU operating frequency according to actual load, achieving high efficiency and energy saving. Optional power modules such as 900W/1200W/1500W/2000W/3000W are available to flexibly adapt to different power requirements.
Unified management, intelligent operation and maintenance
DCM integrates large models and intelligent monitoring technology, improving the efficiency of data center assets, energy consumption, alarms, monitoring and operation management by 80%. It includes functions such as real-time display of operation status on a big data screen, intelligent alarm (predictive fault diagnosis accuracy of 90%, reducing downtime rate of 50%), intelligent discovery (second level asset inventory, accuracy rate of 100%), intelligent energy saving (reducing energy consumption by 30%), intelligent inspection (AI driven report generation), intelligent warranty (7 * 24h online after-sales service), etc.
Specifications
| Chipset | Emmitsburg PCH |
| Processor | 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Heat dissipation | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Memory | 32 DDR5 memory slots, up to 5600MT/s; Supports memory expansion through CXL, with up to 16 memory slots expandable and a maximum of 5600MT/s |
| Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: 8-35 2.5-inch SAS/SATA/SSD hard drives can be configured (supporting up to 45 2.5-inch hard drives or 34 full drives) NVMe SSD ） Can be configured with 12-20 3.5-inch SAS/SATA hard drives Configurable 4/8/16/24 NVMe SSD drives Configurable 36 * E1. S hard drive* Support Flash storage: Supports dual M.2 SSDs, hard RAID, and hot swappable |
| PCle |
Up to 19 PCIe expansion slots, 2 OCP3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 14 PCIe expansion slots 5.0 Slot Position |
| Network |
Support multiple network expansion capabilities Supports OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0 |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: 900 W AC Platinum/Titanium Power Supply 1500W AC Platinum Power Supply 2000W AC Platinum Power Supply 3000W AC Titanium Power Supply |
| Port |
The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; support Out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control simplify management complexity DCM management software can be optionally selected. Support asset management, energy consumption management, alarm push, efficient repair reporting, and achieve the full life cycle of equipment |
| Operating system |
Microsoft Windows Server、SUSE Linux Enterprise Server、VMware ESXi、Red Hat Enterprise Linux、 CentOS, Oracle Ubuntu, Debian, openEuler, etc |
| Size |
86.1 x 447 x 798 mm (L*W*H) |
