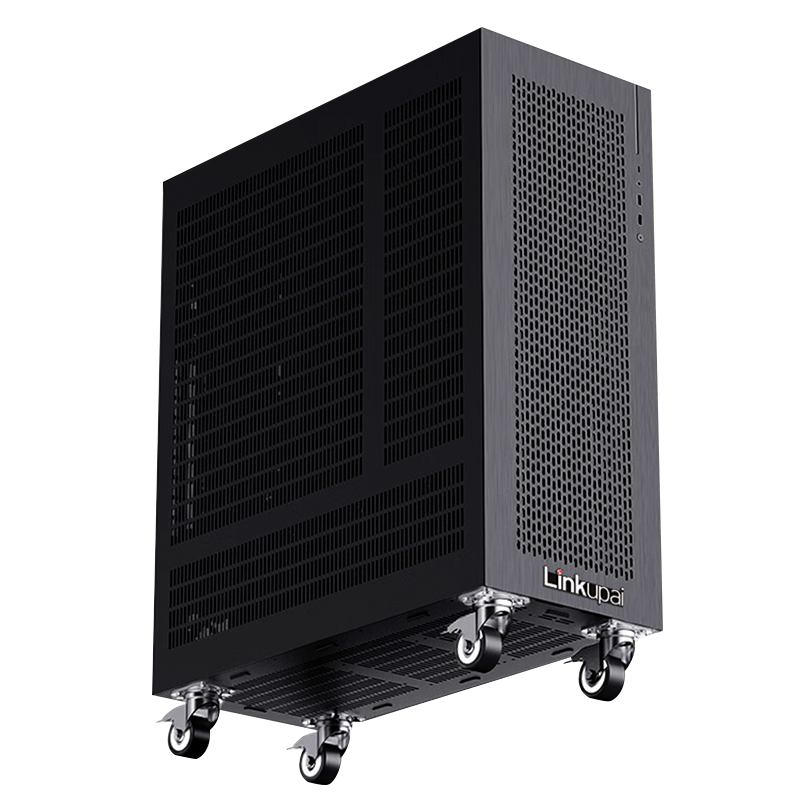

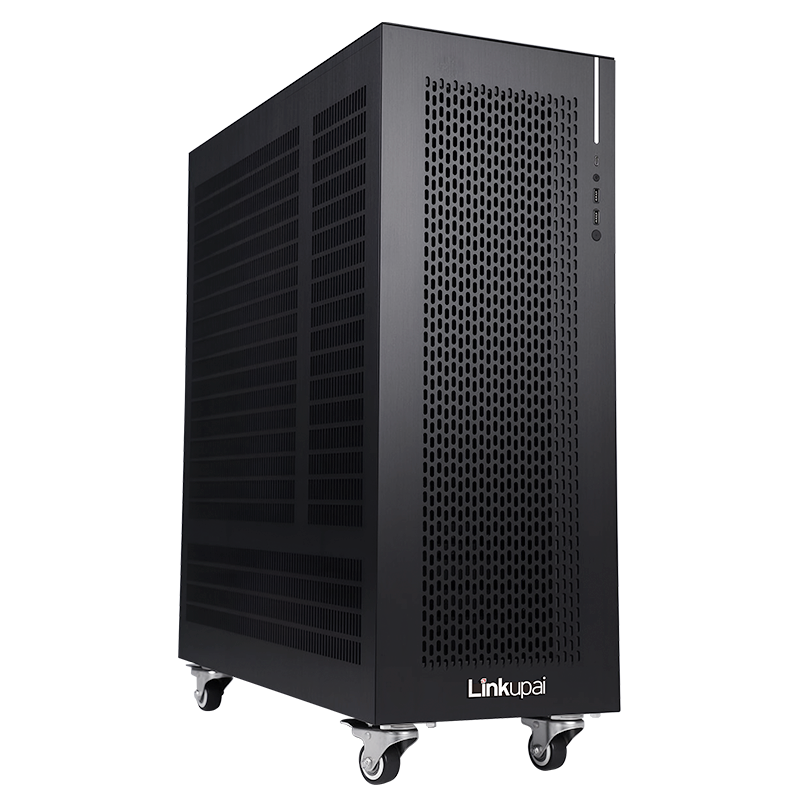

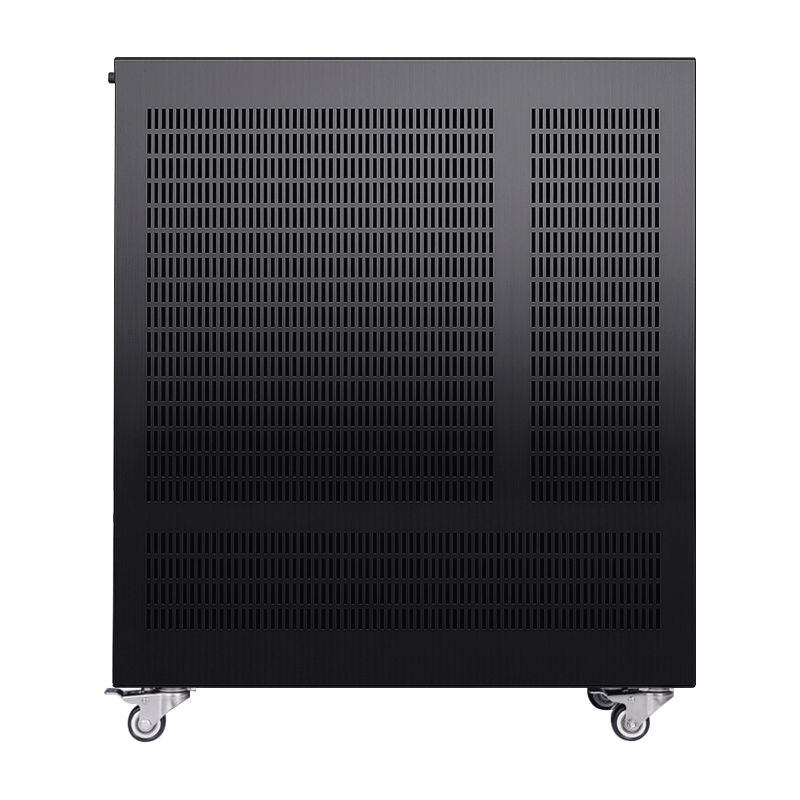

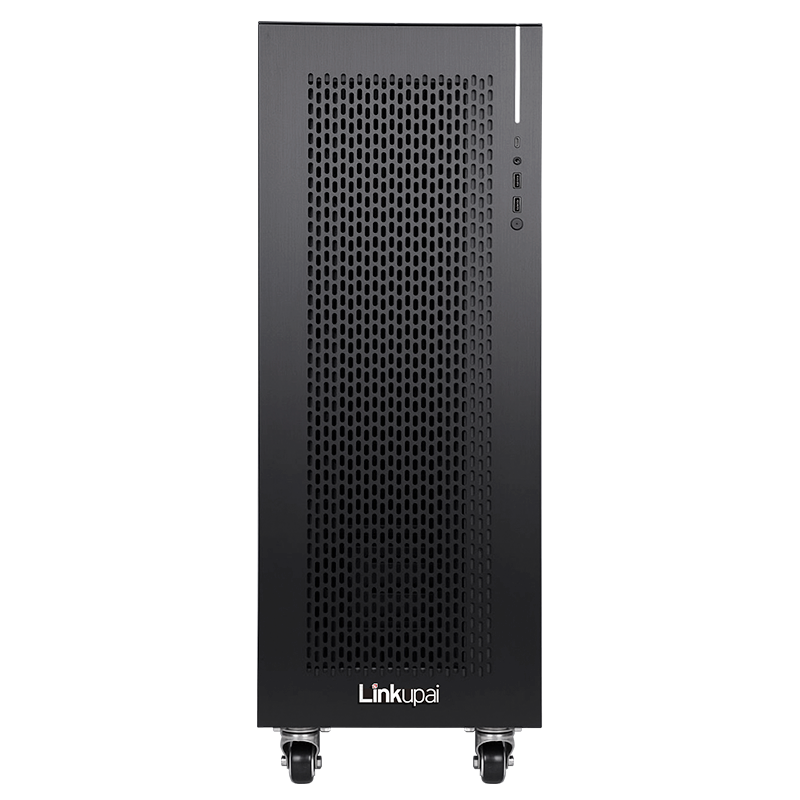

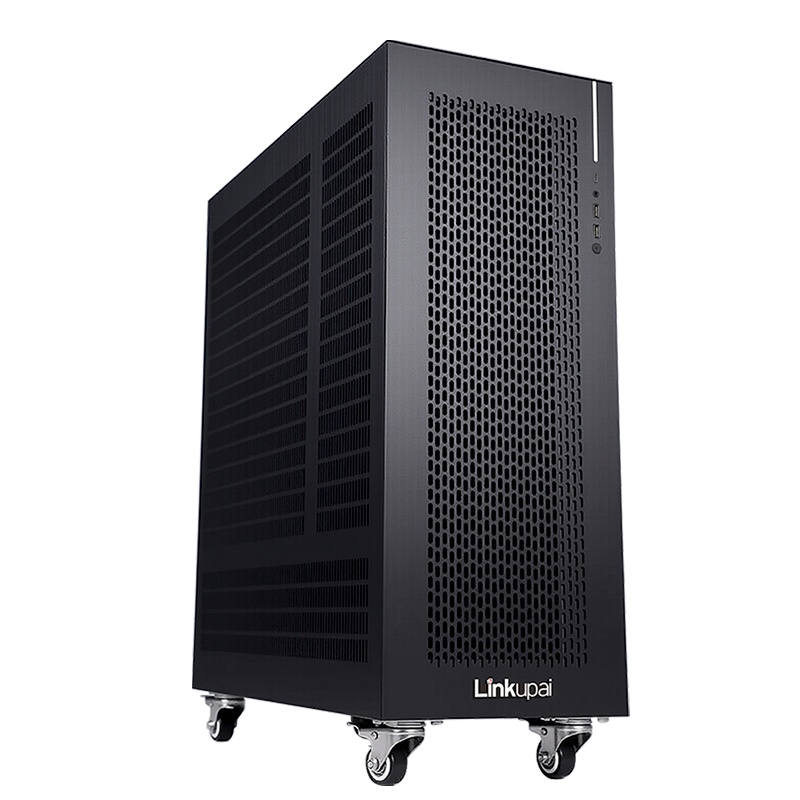

HI7440 Four Card Liquid Cooling Ultimate Workstation
Equipped with two fourth or fifth generation Intel Xeon chips ® Scalable processor, supporting up to 4TB of DDR5 memory, this high-performance workstation makes enterprise level applications and data intensive tasks easier. Whether in data centers, cloud computing, or high-performance computing (HPC) scenarios, the HI7440 can easily handle high-throughput requirements, allowing you to handle complex computing tasks with ease.
Function Summary
Extreme computing power, powerful driving
Two Intel Xeon processors, supporting up to 385W power consumption, with astonishing computing power. Every calculation is like flying at lightning speed, completing complex calculations in an instant, suitable for high load tasks, ensuring that your project will never get stuck.
Large memory, smooth and unobstructed
16 DDR5 memory slots, supporting up to 4TB of memory. Smooth data flow like a spring, providing ultra-high bandwidth and excellent stability, making it easy for memory intensive applications.
Four card liquid cooling, ultimate heat dissipation
Adopting a four card liquid cooling collaborative architecture, it effectively reduces temperature and ensures stable GPU output, presenting realistic visual and powerful computing effects for deep learning, 3D rendering, or VR applications.
Flexible expansion, high-speed storage
Through multiple PCle slots, the system can flexibly support high-speed storage devices for rapid expansion. Whether it's increasing storage space or improving performance, it can easily meet different application needs.
Specifications
| Chipset | Intel ® C741 |
| Processor | Supports 2 fourth or fifth generation Intel chips ® xeon ® Scalable processor |
| Heat dissipation | Liquid cooling |
| Memory | Supports 16 DDR5 RDIMM memory slots, up to 4TB, and a maximum frequency of 5600MHz |
| Storage |
Hard drive: Supports 2 M.2 hard drives, expandable to 12 3.5/2.5-inch hard drives Interface: Supports 2 M.2 PCIe 4.0 x4 interfaces, 3 MCIOs can support 6 NVMe storage, 12 SATA 3.0 interfaces |
| PCIe | Supports 4 PCIe 5.0 x16 dual width slots, 2 PCIe 5.0 x16 single width slots, and 1 PCIe 5.0 x8 single width slot |
| Network | 1 1Gbps RJ45 dedicated management port, 2 1Gb RJ45 data network ports |
| Power supply | Supports module power supplies such as 1650W/2050W/2600W |
| Port |
Front end: 2 USB 3.0 ports Rear: 1 COM serial port, 4 USB 3.0 ports, 1 VGA port, 2 1Gb RJ45 ports, 1 1Gbps RJ45 management port |
| Operating system | Support Microsoft Windows Server and Linux operating systems (including mainstream distributions such as Ubuntu and CentOS) |
| Size | 581 x 262 x 700毫米（长*宽*高） |
