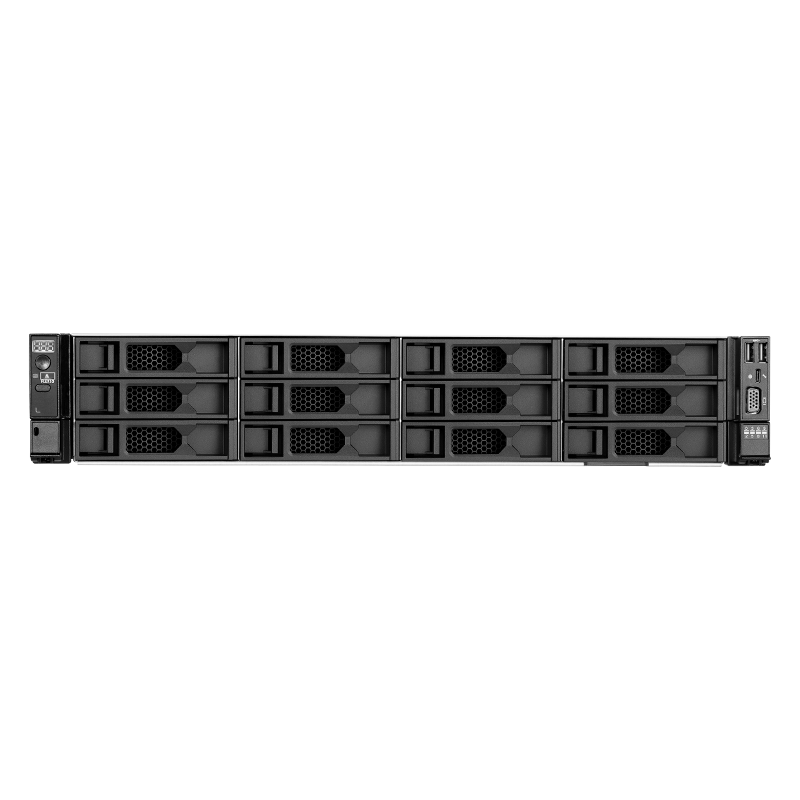

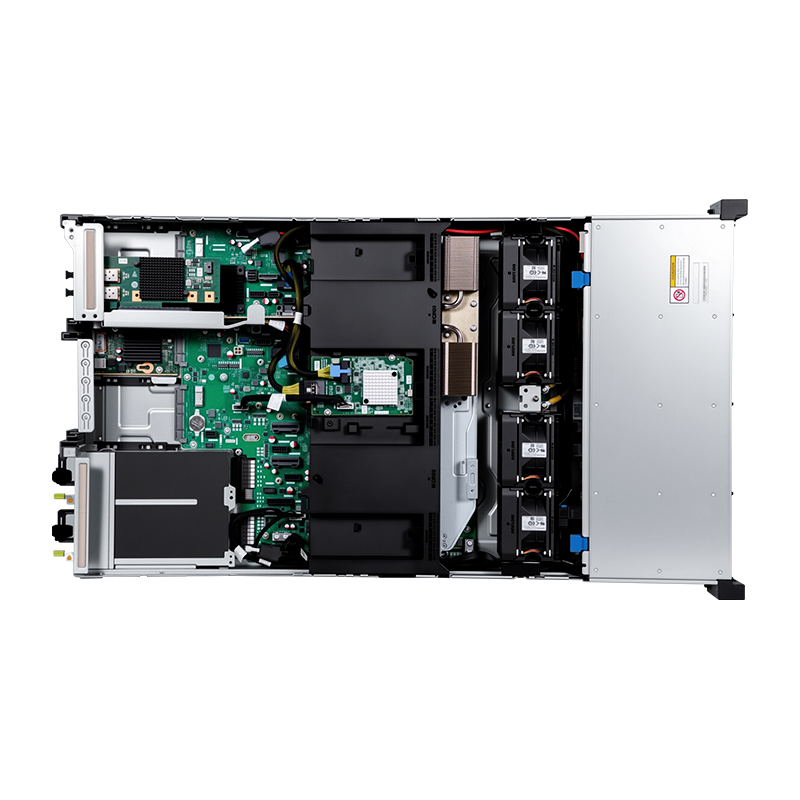

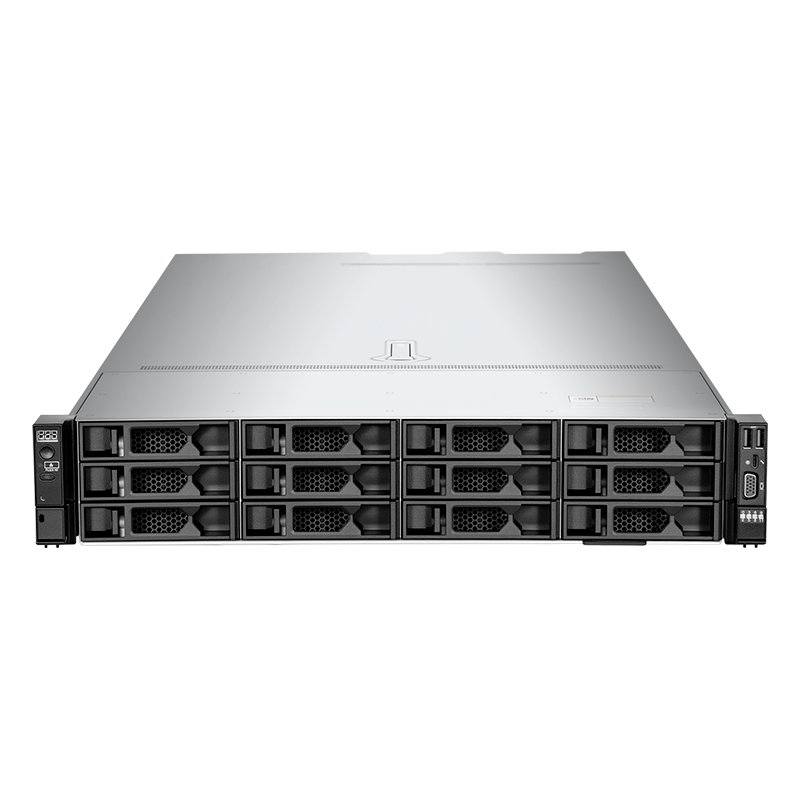

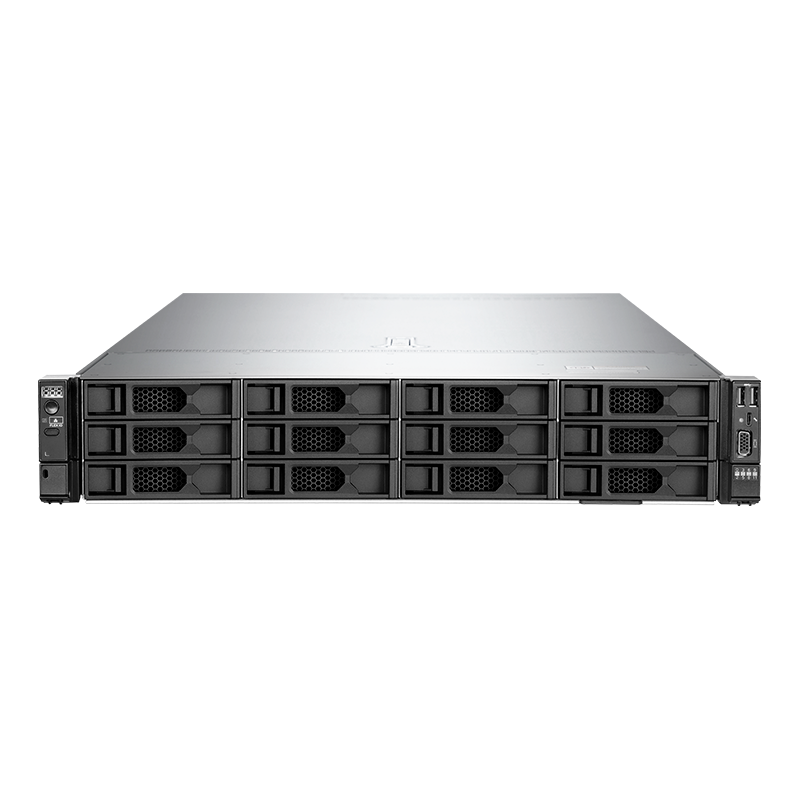

H6320 rack mounted server
H6320 is a 2U 2-way rack server with flexible configuration that can be widely used for loads such as cloud computing, virtualization, databases, and big data. H6320 can be configured with 2
Lu Intel ® xeon ® Scalable processor, 32 DDR4 memory slots, 14 PCIe expansion slots, and support for large capacity local storage resources.
Integrated DEMT intelligent power management, optional DateCenterManage full lifecycle management software, can effectively reduce operating costs and improve investment returns.
Function Summary
Superb computing power, flexible memory configuration
The 2U space supports 2 Intel Xeon Scalable processors, with a UPI rate of 11.2GT/s and a maximum of 40 cores per CPU. It supports Turbo Boost acceleration, Hyper Threading, and AVX-512 instruction set, resulting in a performance improvement of up to 46% compared to the previous generation. Equipped with 32 DDR4 memory slots, with a maximum capacity of 8TB; can be paired with 16 Intel memory slots ® Aoteng ™ Persistent memory with a total capacity of 12TB, meeting diverse load requirements.
Rich expansion, high-capacity storage
Supports 4 300W full height and full length dual width GPUs, or 8 full height and full length single width GPUs, or 11 half height and half length GPUs, providing super heterogeneous computing power. It can accommodate up to 45 2.5-inch hard drives or 34 full NVMe SSDs, meeting high-capacity storage requirements. Equipped with 2 FLEX IO slots, supporting OCP 3.0 network card on-demand selection, and supporting BSST boot acceleration technology, 2 M.2 SSDs achieve system and data separation deployment.
Smart energy saving, energy efficiency optimization
Support DEMT intelligent power management (with multiple measures to save power up to 18%), equipped with 80PLUS titanium power supply (conversion rate of 96%, certified by China Energy Conservation), optional 900W-3000W modules, 1200W/1500W with HVDC technology to improve energy efficiency
Intelligent management, efficient operation and maintenance
DCM integrates large models and intelligent monitoring to improve data center management efficiency by 80%. It supports multi-dimensional display, intelligent alarm (accuracy rate of 90%), second level asset inventory (accuracy rate of 100%), energy saving of 30%, and intelligent inspection and warranty.
Specifications
| Chipset | Intel C621A |
| Processor | 1/2 of third-generation Intel ® xeon ® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W |
| Heat dissipation | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Memory | 32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel products ® Aoteng ™ Persistent memory 200 series, up to 3200MT/ |
| Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: 8-31 2.5-inch SAS/SATA/SSD hard drives can be configured Can be configured with 12-20 3.5-inch SAS/SATA hard drives Configurable 4/8/16/24 NVMe SSD drives Supports up to 45 2.5-inch hard drives or 34 full NVMe SSDs with Flash storage Dual M.2 SSD |
| PCle |
Up to 14 PCIe 4.0 expansion slots, including 1 dedicated PCIe expansion slot for RAID cards, 2 dedicated FLEX IO expansion slots for OCP3.0, and 11 Standard PCIe 4.0 expansion slot |
| Network |
Support multiple network expansion capabilities Support OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed. support |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: 900 W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC) 1500W AC Platinum Power Supply (Input: 200V AC~240V AC or 192V DC~288V DC) 3000W AC Titanium Power Supply (Input: 230V AC~240V AC) 2000W AC Platinum Power Supply (Input: 220V AC~240V AC or 200V DC~288V DC) |

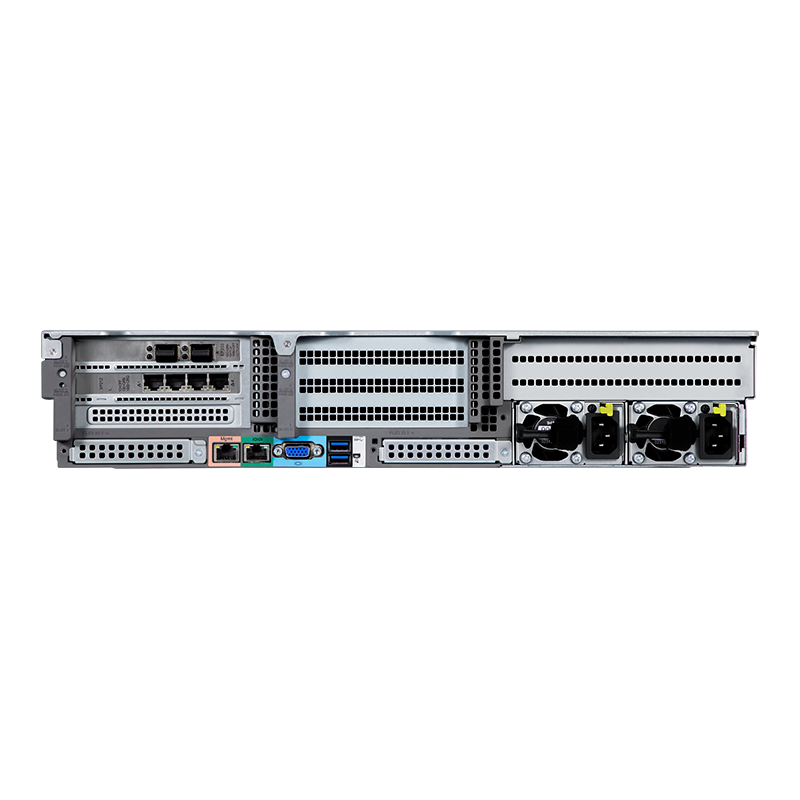

| Port |
The iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; support Out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control simplify management complexity DCM management software can be optionally selected. Support asset management, energy consumption management, alarm push, efficient repair reporting, and achieve full lifecycle management of equipment |
| Operating system |
Microsoft Windows Server、SUSE Linux Enterprise Server、VMware ESXi、Red Hat Enterprise Linux、 CentOS, Oracle Ubuntu, Debian, openEuler, etc |
| Size |
86.1 x 447 x 790 mm (L*W*H) |
