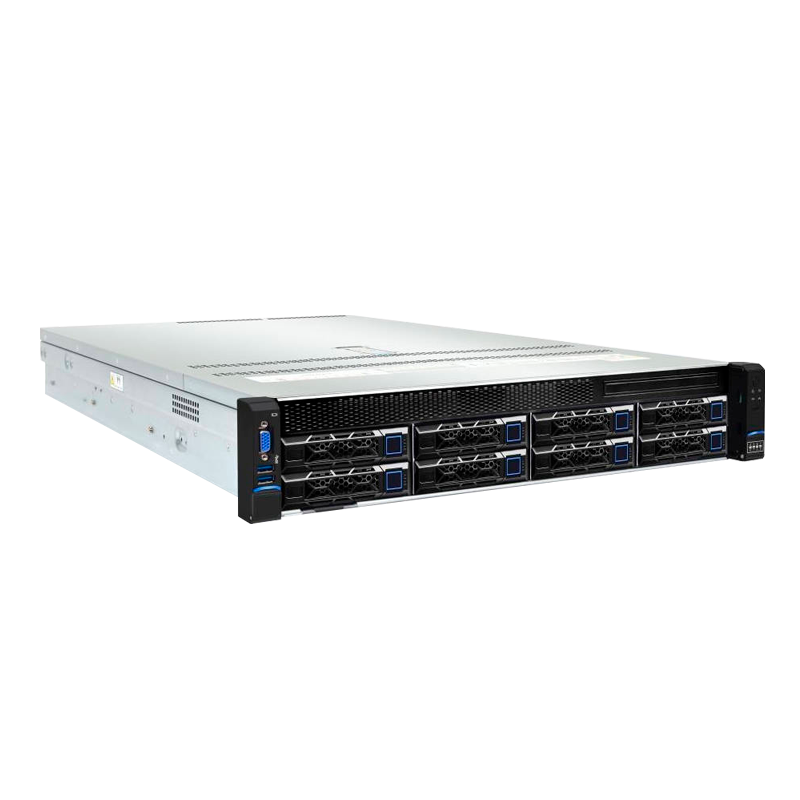

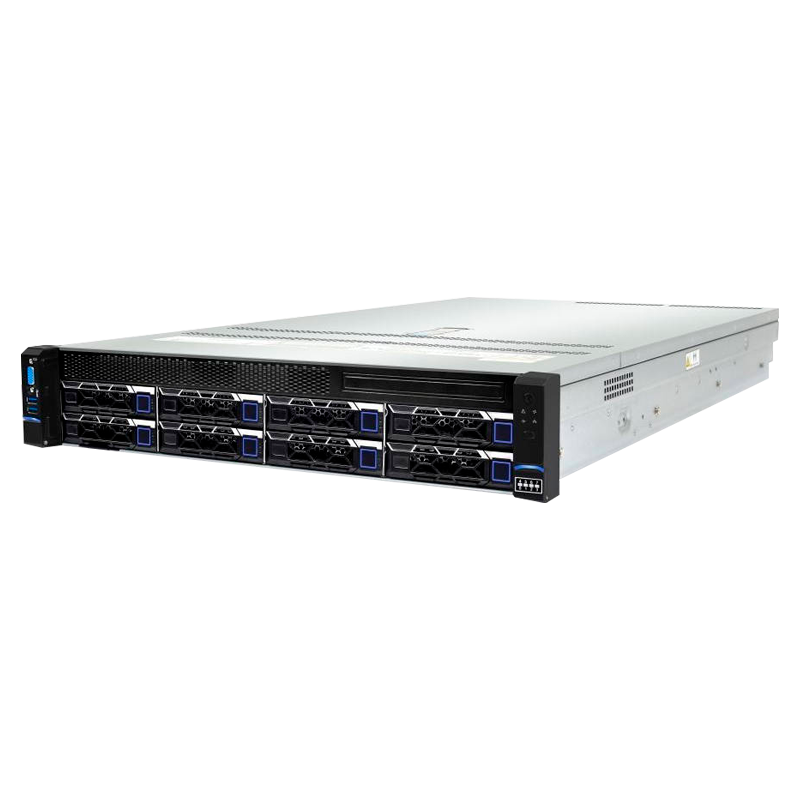

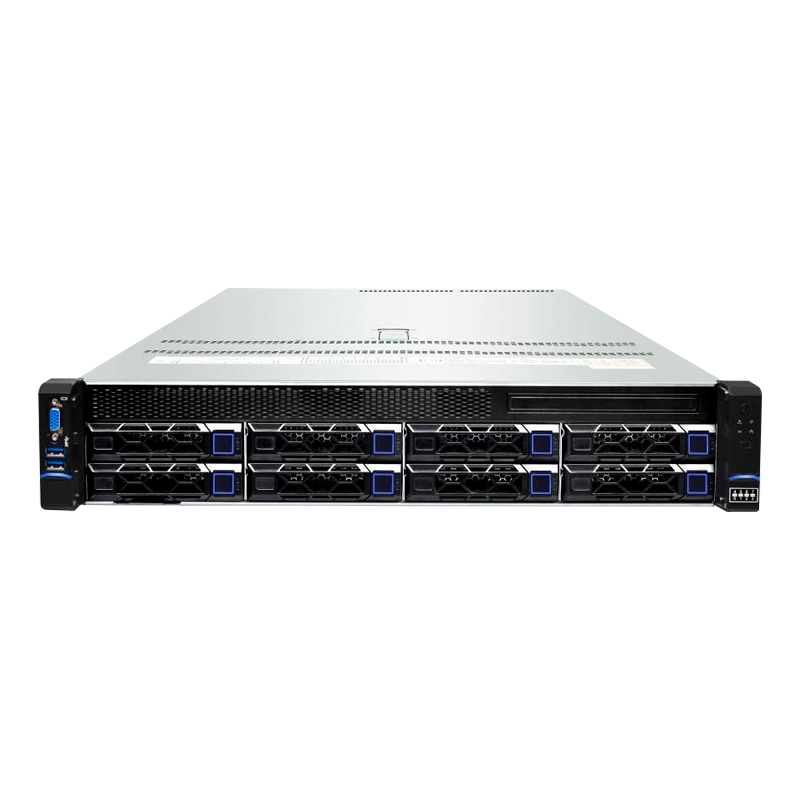

H6525 rack mounted server
The Shuju Hongxin H6525 is a widely used 2U dual channel server equipped with AMD's latest EPYC 9004/9005 series processors. The product adopts a modular design approach and can be flexibly configured according to business needs. It has excellent computing performance and rich scalability, achieving excellent cost-effectiveness and energy consumption ratio. It is suitable for applications such as cloud computing, virtualization, high-performance computing, and artificial intelligence.
Function Summary
Flexible topology, scalability
Adopting hardware module decoupling design, it can flexibly configure computing, storage, and network resources to adapt to diverse needs. Equipped with up to 10 PCIe standard slots and supporting OCP NIC 3.0 network expansion, it has strong expandability.
New architecture, ultimate performance
Equipped with 2 AMD EPYC 9004/9005 series processors, with a maximum of 192 cores per CPU and a maximum TDP of 500W; supporting 24 DDR5 memories with a maximum frequency of 6400MT/s, excellent memory bandwidth and capacity performance; Fully unleash CPU computing power through 4 xGMI interconnect links.
Enrich the ecology, ensure stability and security
Integrated intelligent management chip, providing an open management platform and multiple management protocol support. Adopting redundant design of system key components and modular design of functional components to enhance reliability and maintainability.
Intelligent operation and maintenance, continuous operation
Support intelligent remote management and remote fault diagnosis functions, fully ensuring the efficient and stable operation of equipment 24/7, reducing operation and maintenance costs and downtime risks.
Specifications
| Chipset | |
| Processor | Supports 2 AMD EPYCs ™ 9004/9005 series processors, supporting up to 192 cores per CPU, with a maximum power of 500W |
| Heat dissipation | |
| Memory | Supports 24 DDR5 memory slots, up to 6400MT/s, RDIMM/3DS RDIMM |
| Storage |
Front end hard drives: 12 3.5 "(8 * SAS/SATA/NVMe+4 * SAS/SATA hard drives) Built in hard drives: 2 M.2 (2280/22110, PCIe 3.0x4) Rear hard drive: up to 4 optional 2.5 |
| PCle |
Supports up to 10 PCIe expansion slots (OCP3.0 card is mutually exclusive with one PCIe 5.0 standard single width slot) Standard configuration includes 2 * PCIE5.0X16+4 * PCleX8 |
| Network |
Optional support for 1 OCP 3.0 network card, NCSI support, optional 4 × 1GbE/2 × 10Gb SFP+/4 × 10Gb SFP+/2 × 25Gb SFP28 Or other cards that meet the standards |
| Power supply | Optional CRPS 1300/2000/2700W Platinum Dual Electric |
| Port |

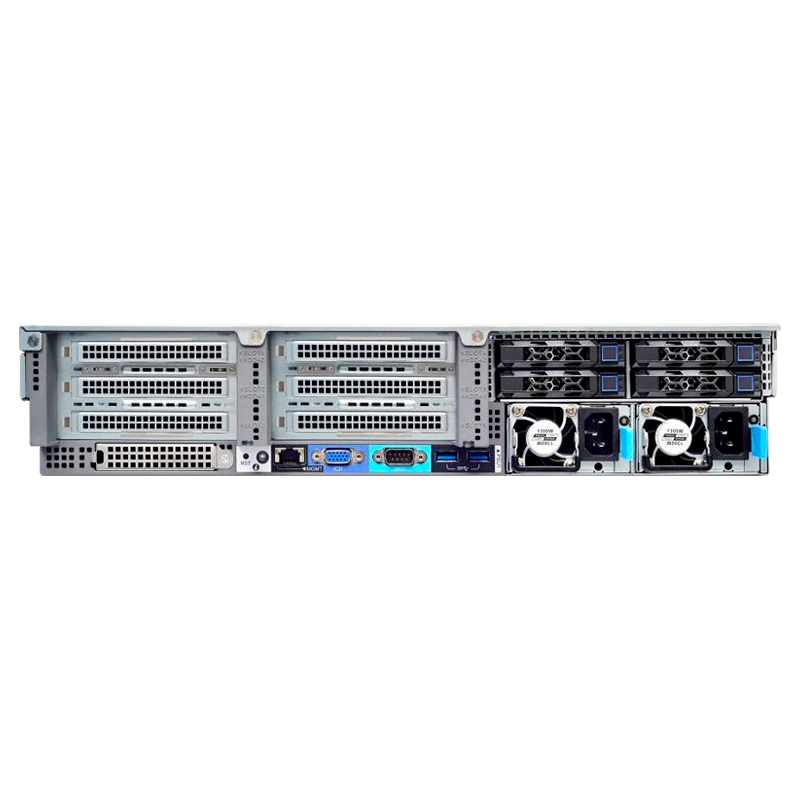

Front end: 1 VGA interface, 2 USB 3.0 interfaces Rear: 1 VGA port, 1 management network port, 2 USB 3.0 ports, 1 COM port |
| Operating system |
Support Microsoft ® Windows Server ®、 Red Hat ® Enterprise Linux ®、 SUSE ® Linux Enterprise Server、 CentOS ®、 Ubuntu ® |
| Size | Width 448x Height 87x Depth 763mm (including ear hooks 783mm) |
