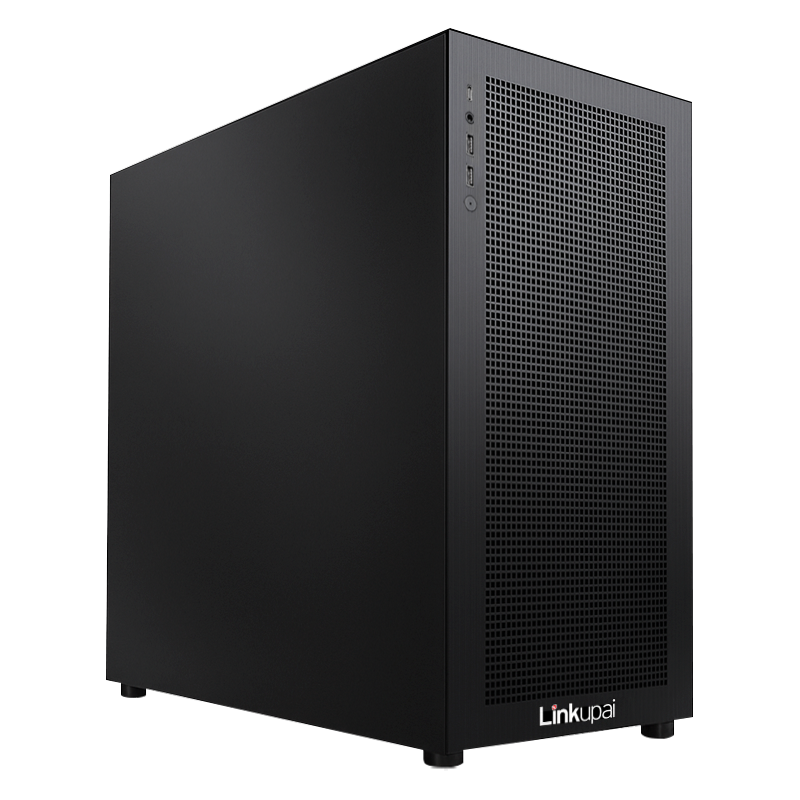

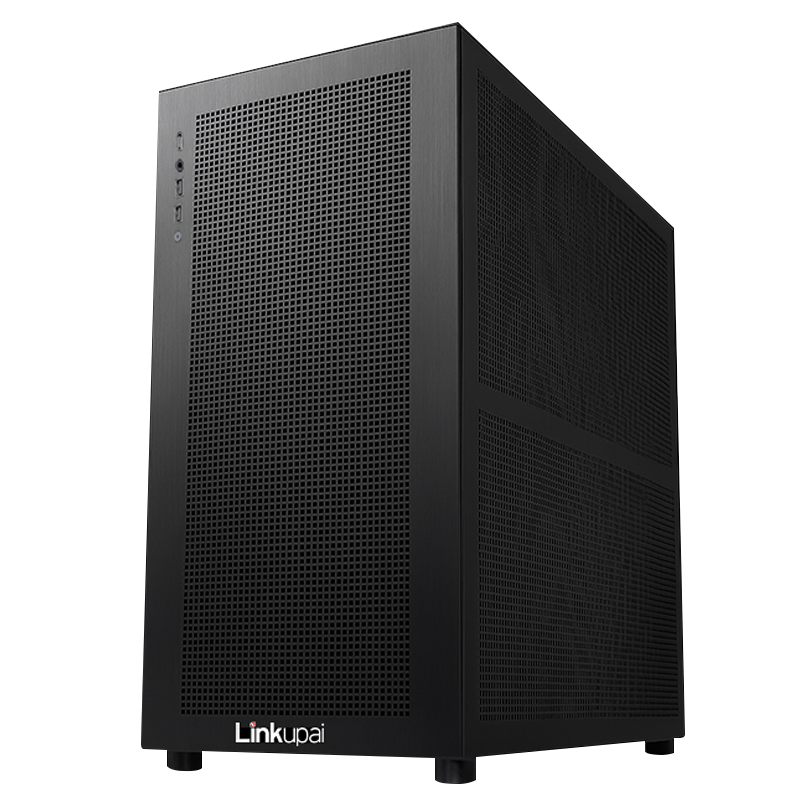

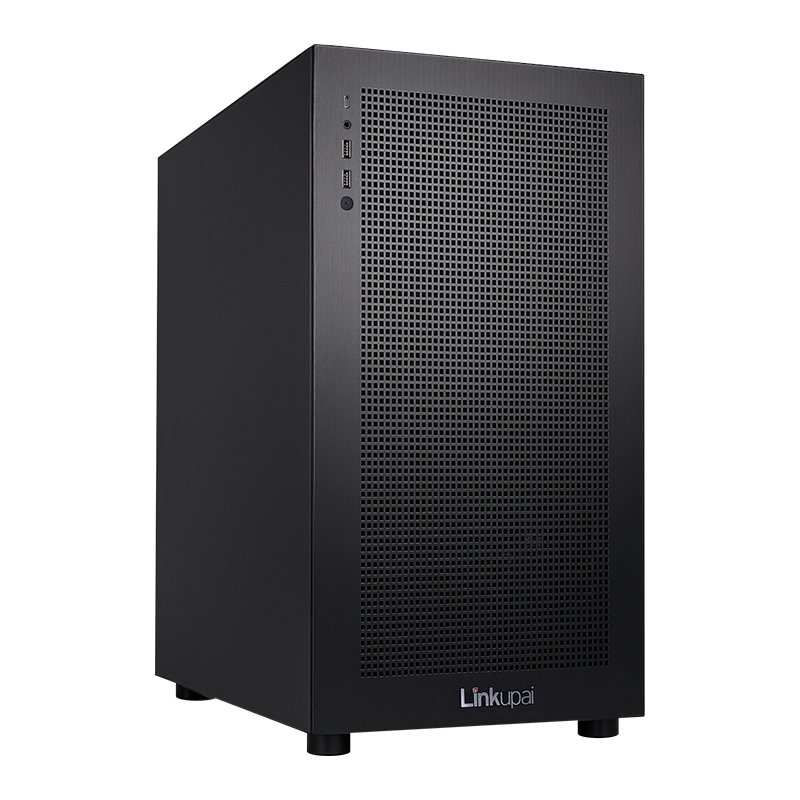

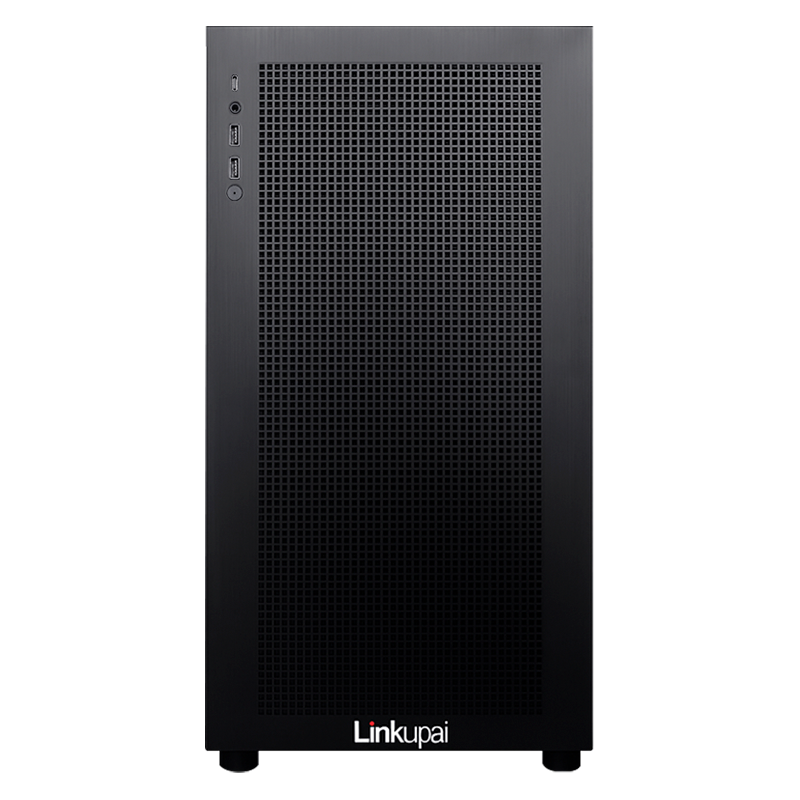

HW7320 Xeon Workstation
Shuju Hongxin HW7320 tower workstation, unleash your limits. Featuring dual slots, the second-generation Intel @ Xeon ® Scalable processors and Intel ® The C621A chipset, with its powerful computing capabilities, allows you to easily handle large-scale data processing and high load computing tasks. Equipped with ultra large memory and high-speed storage configuration, it optimizes workflow and improves efficiency, designed specifically for enterprise level applications, data centers, and high-performance computing (HPC) environments.
Function Summary
Powerful computing power, unlimited enjoyment
Support multi-core processors, unleash outstanding parallel computing performance, and cope with complex tasks
Be diligent as if walking on flat ground, every outburst is full of "hard" strength, allowing creativity and effectiveness
Rapid leap in speed.
Extra large memory to ensure stability
With ultra-high capacity memory configuration, it provides strong support for large-scale computing. knot
Combining ECC technology, every step of the operation is precise and error free, making it efficient and stable
Always online, able to handle any workload with ease.
Fast storage, fast response
Multi interface storage design, supporting M.2 and U.2 high-speed storage, data transmission
Swift like the wind, loading and response are completed in an instant, efficiency skyrockets, with just one touch
Send.
Intelligent management, always in control
Built in IPMI and remote management tools make the system status clear at a glance, without any issues
No matter where you are, you can efficiently control, stay stable online, and easily respond with ease
Every challenge.
Powerful computing power, unlimited enjoyment
Support multi-core processors, unleash outstanding parallel computing performance, and cope with complex tasks
Be diligent as if walking on flat ground, every outburst is full of "hard" strength, allowing creativity and effectiveness
Rapid leap in speed.
Extra large memory to ensure stability
With ultra-high capacity memory configuration, it provides strong support for large-scale computing. knot
Combining ECC technology, every step of the operation is precise and error free, making it efficient and stable
Always online, able to handle any workload with ease.
Specifications
| Chipset | Intel ® C621A |
| Processor | Supports 2 third-generation Intel chips ® xeon ® Scalable processor |
| Heat dissipation | Support air cooling/liquid cooling |
| Memory | Supports 16 DIMM slots, up to 4TB, DDR4-3200MT/s ECC LRDIMM/RDIMM |
| Storage |
Hard drive: Supports 2 M.2 hard drives, expandable 4 3.5-inch hard drives Interface: Supports 14 SATA3 6Gb/s ports, 2 M.2 PCIe 4.0 x4 interfaces, and 3 MCIO interfaces |
| PCle | Supports 4 PCIe 4.0 x16 slots and 2 PCIe 4.0 x8 slots |
| Network | 2 1GbE, RJ45 Ethernet ports, 2 2.5GbE Ethernet ports, 1 IPMI management Ethernet port |
| Power supply | Supports module power supplies such as 1250W/2000W/2600W |
| Port |
Front end: 2 USB 3.0 ports Rear: 2 RJ45 Gigabit Ethernet ports, 1 COM serial port, 1 VGA port, 4 USB 3.0 ports, 1 BMC network port |
| Operating system | Support Microsoft Windows Server and Linux operating systems (including mainstream distributions such as Ubuntu and CentOS) |
| Size | 505 x 266 x 511mm(L*W*H) |
