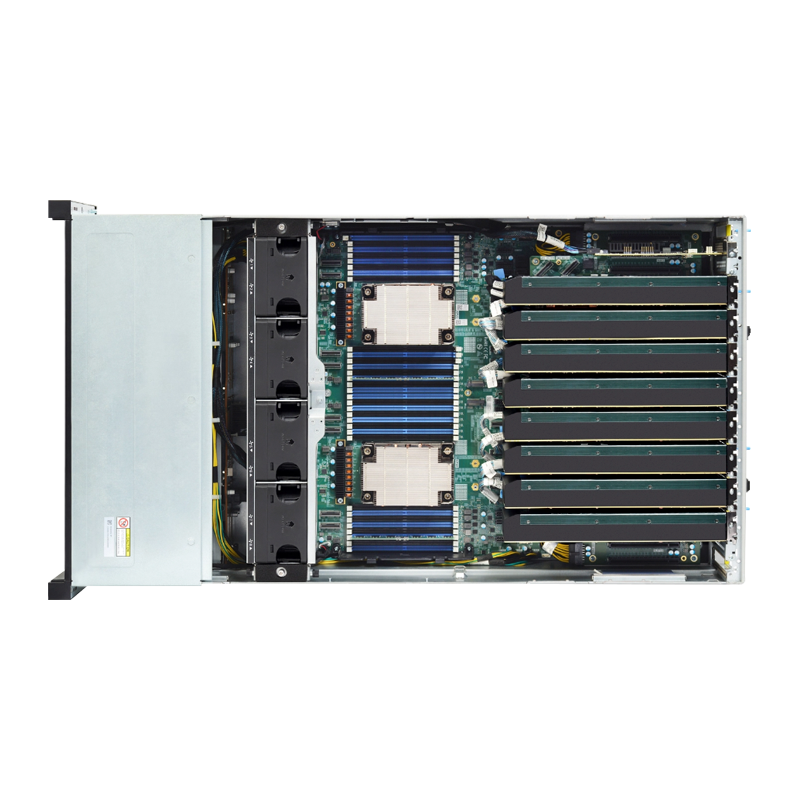

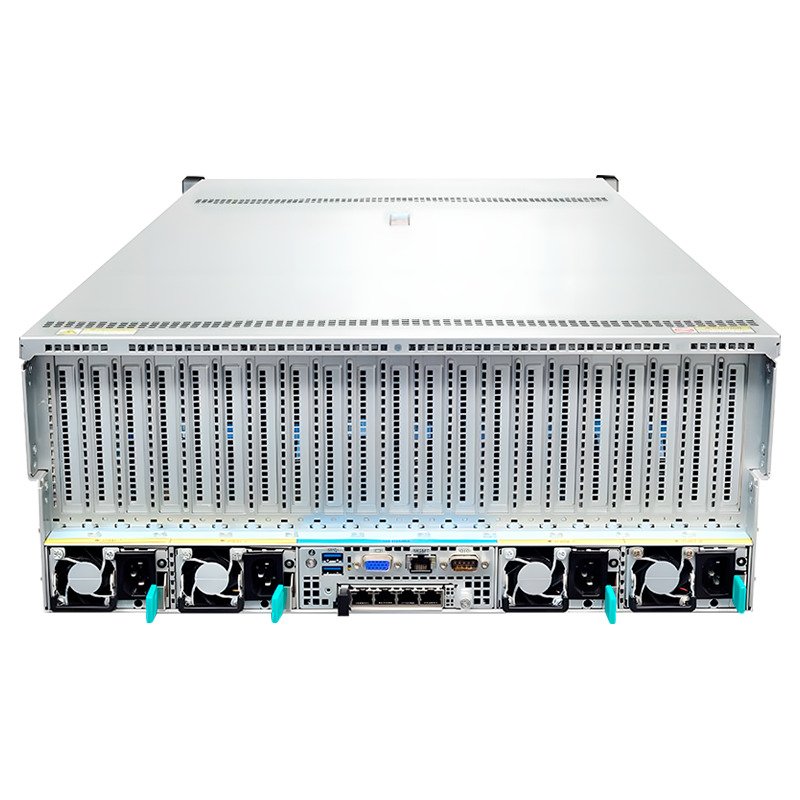

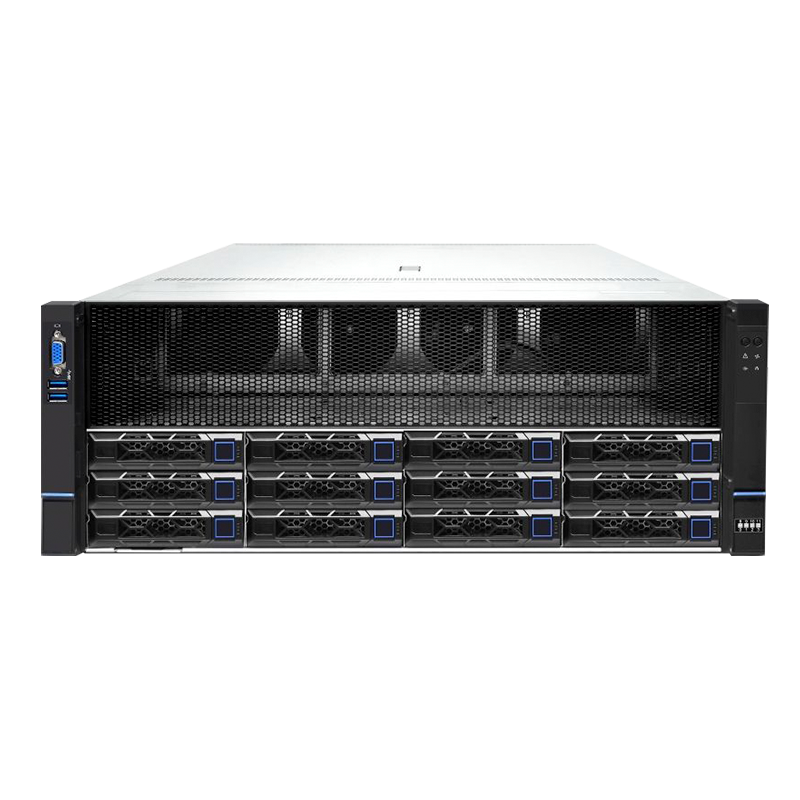

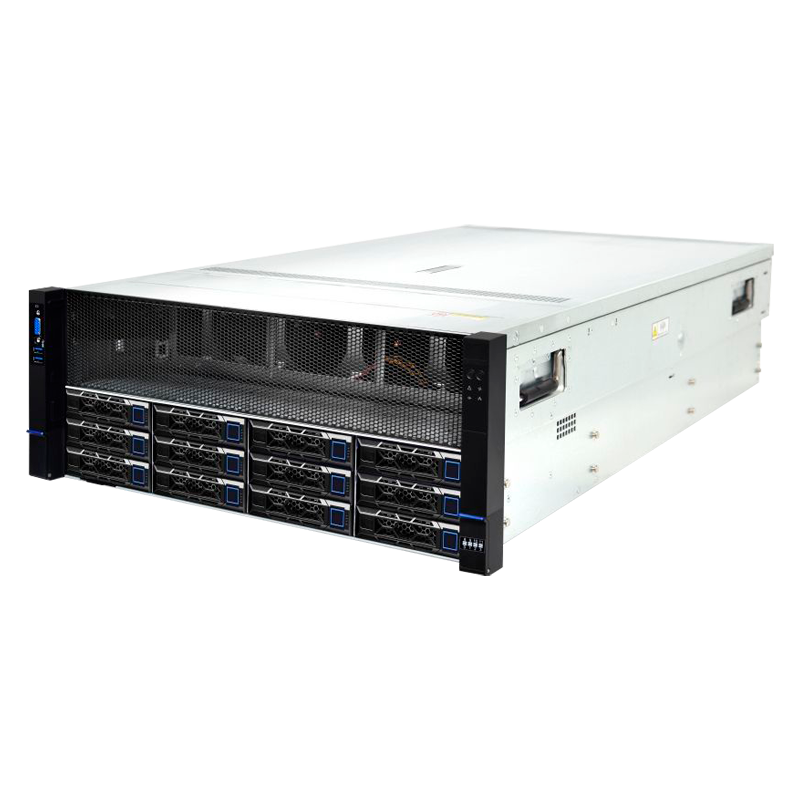

HG8480TS Xeon Server
HG8480TS is a new generation flagship 4U dual channel 10 card GPU server product launched by Shuju Hongxin, based on the fourth/fifth generation Intel ® xeon ® Scalable processor, fully upgraded in CPU, GPU, and I/O specifications, supporting various mainstream AI acceleration cards in the industry, with excellent performance, flexible architecture, strong scalability, rich configuration, and high reliability, suitable for applications such as artificial intelligence, high-performance computing, and data analysis.
Function Summary
Super performance, online performance
Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor, providing excellent computing performance, easily handling high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 32 DDR5 RDIMMs, 3DS RDIMMs with a maximum memory of 5600MHz and a maximum capacity of 8TB
High speed storage with multiple expansion options
Hard drive: Supports 12 3.5/2.5 hard drives, 2 M.2 hard drives, internal: integrated 6Gb/s onboard SATA, meeting high requirements for storage expansion and high-speed data transfer.
Efficient heat dissipation and precise temperature control
Effectively reducing temperature, ensuring long-term stable operation of the system, improving overall performance, and optimizing energy efficiency.
Super performance, online performance
Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor, providing excellent computing performance, easily handling high load tasks, suitable for large-scale data processing and complex computing applications.
Ultimate memory, high-frequency support
Supports 32 DDR5 RDIMMs, 3DS RDIMMs with a maximum memory of 5600MHz and a maximum capacity of 8TB
Specifications
| Chipset | System on Chip |
| Processor | Supports 2 4th/5th generation Intel chips ® xeon ® Scalable processor |
| Heat dissipation | Air cooling |
| Memory | Supports 32 DDR5 RDIMMs, 3DS RDIMMs with a maximum memory of 5600MHz and a maximum capacity of 8TB |
| Storage |
Hard drives: Supports 12 3.5/2.5 hard drives and 2 M.2 hard drives Internal: Integrated 6Gb/s onboard SATA |
| PCle | Supports up to 15 PCIe x16 standard slots |
| Network | Supports 1 OCP3.0 network card, with multiple network solutions available for selection |
| Power supply | CRPS 2700W Platinum Four Electric |
| Port |
Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Operating system |
Support Microsoft ® Windows Server ®、 Red Hat ® Enterprise Linux ®、 SUSE ® Linux Enterprise Server、 CentOS ®、 Ubuntu ® |
| Size | 842 x 448 x 175mm（D*W*H） |
