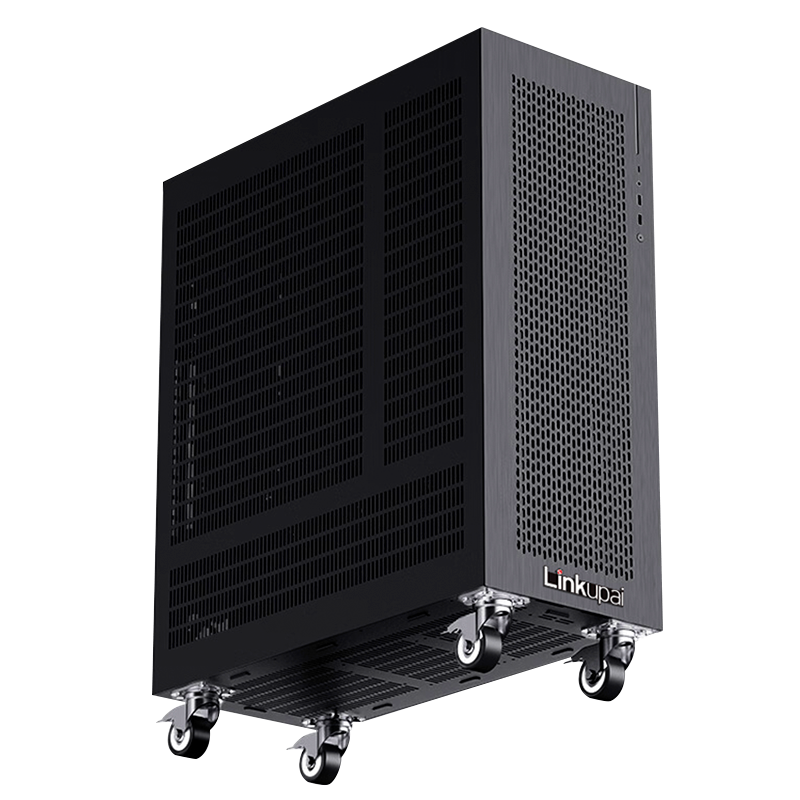

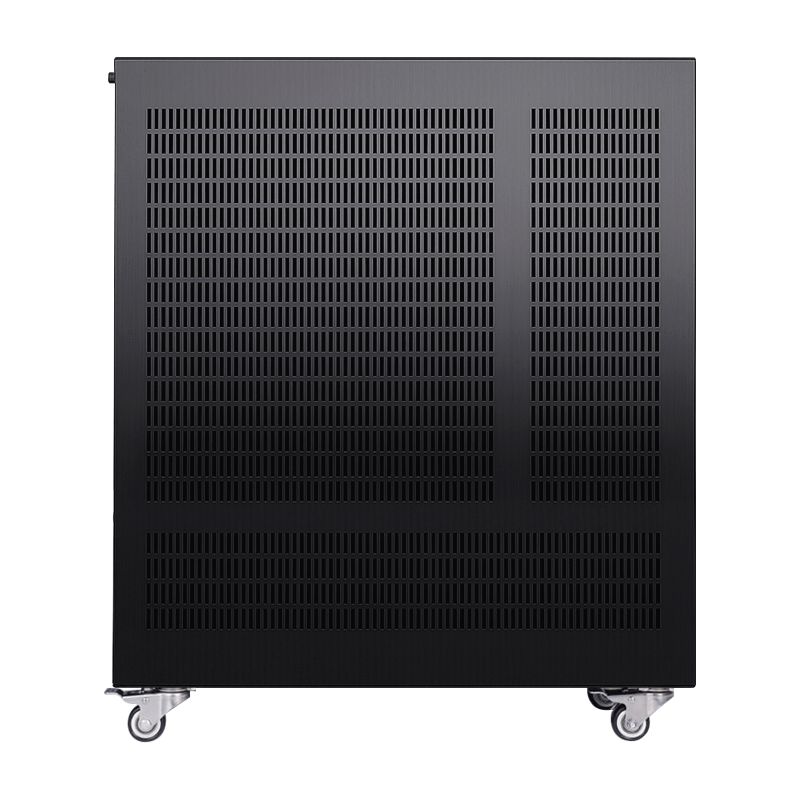

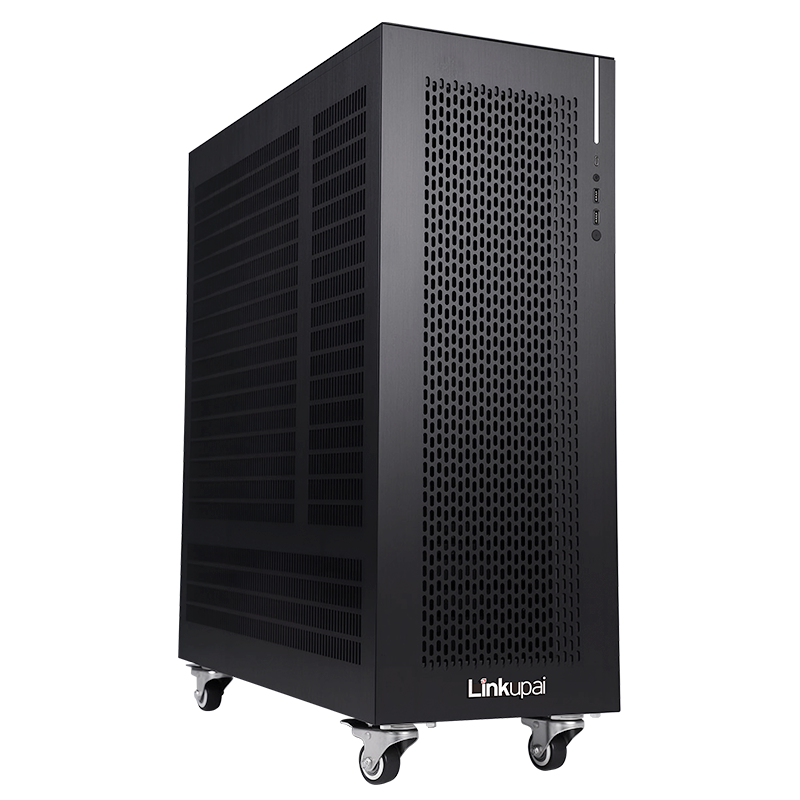

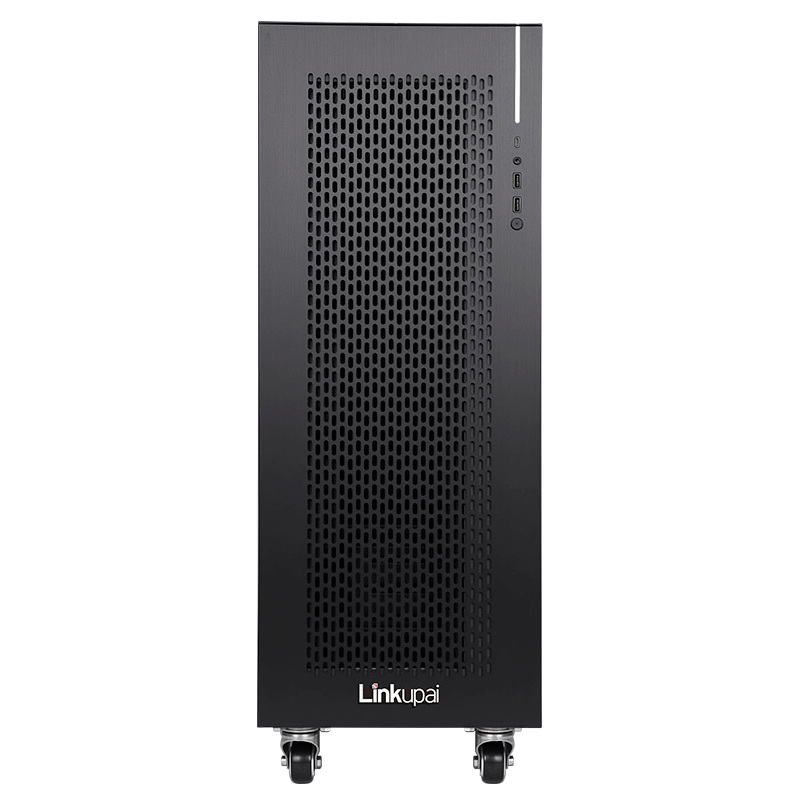

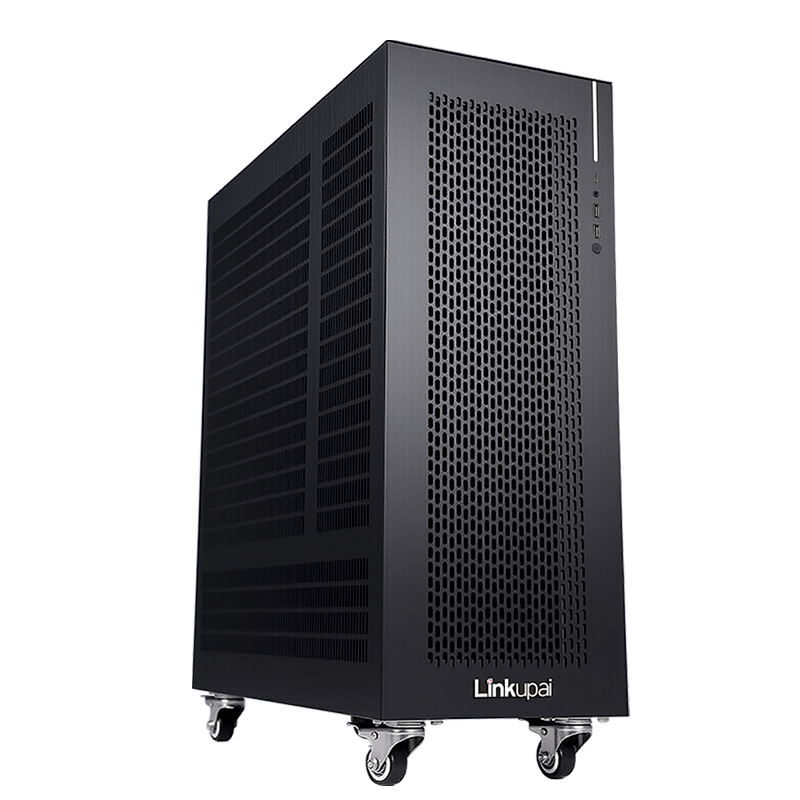

HI7545 dual channel liquid cooling workstation
Linkupai HI7545 four card liquid cooled full engine workstation, like a passionate release, subverts tradition, dual AMD EPYC ™ 9005 processor+four card liquid cooling collaborative architecture, designed to create a revolutionary cooling solution for GPU cluster loads. Through the design of a split type liquid cooling pipeline, it accurately covers the core heat sources of four high-performance graphics cards, combined with a high thermal conductivity cold plate, to achieve uniform temperature control of GPU temperature difference, ensuring ultra quiet operation even under full load for a long time. Support four card parallel computing and lossless expansion. Whether you are pursuing enterprise level stability or ultimate performance, this workstation can ignite your passion in every moment!
Function Summary
Ultimate Core, Unleashing Passion
Supports 2 AMD EPYCs ™ The 9005 series processor, with dual cores and unlimited energy in each computing cycle, helps you tackle the most demanding tasks.
Four card liquid cooling, with full computing power
Adopting a four card liquid cooling collaborative architecture, it effectively reduces temperature and ensures stable GPU output. Whether it is deep learning, 3D rendering, or VR applications, it can present realistic visual and powerful computing effects.
Diversified storage, expandable at will
Supports 1 M.2 hard drive interface with expandable 12 3.5 "or 15 2.5" hard drive slots, multiple storage options for you to choose from, and fast data access that makes your heart beat faster.
Intelligent management, control the overall situation
Equipped with comprehensive management interfaces and remote monitoring functions, the system status is fully grasped, ensuring that the workstation operates efficiently at all times and places.
Specifications
| Chipset | System on Chip |
| Processor | Supports 2 AMD EPYCs ™ 9005 series processors |
| Heat dissipation | liquid cooling |
| Memory | Supports 24 DIMM DDR5 6000 MHz RDIMM memory |
| Storage |
Hard drive: Supports 1 M.2 hard drive, expandable to 12 3.5-inch or 15 2.5-inch hard drives Interfaces: onboard 1 M.2 interface, 1 SlimSAS 4i interface, 2 SlimSAS 8i interfaces |
| PCIe | Supports 4 PCIe 5.0 x16 slots |
| Network | 2 10GbE LAN ports, 1 1GbE management port |
| Power supply | Supports module power supplies such as 1650W/2050W/2600W |
| Port |
Front end: 2 USB 3.0 ports Rear: 1 VGA, 2 10GbE RJ45 Ethernet ports, 1 MLAN management Ethernet port, 2 USB 3.2 ports, 1 COM port |
| Operating system | Support Microsoft Windows Server and Linux operating systems (including mainstream distributions such as Ubuntu and CentOS) |
| Size | 581 x 262 x 700mm(L*W*H) |
Resource Download
Sort
Name
File format
Size
Operation
01
HI7545 双路液冷工作站
299.19 KB
