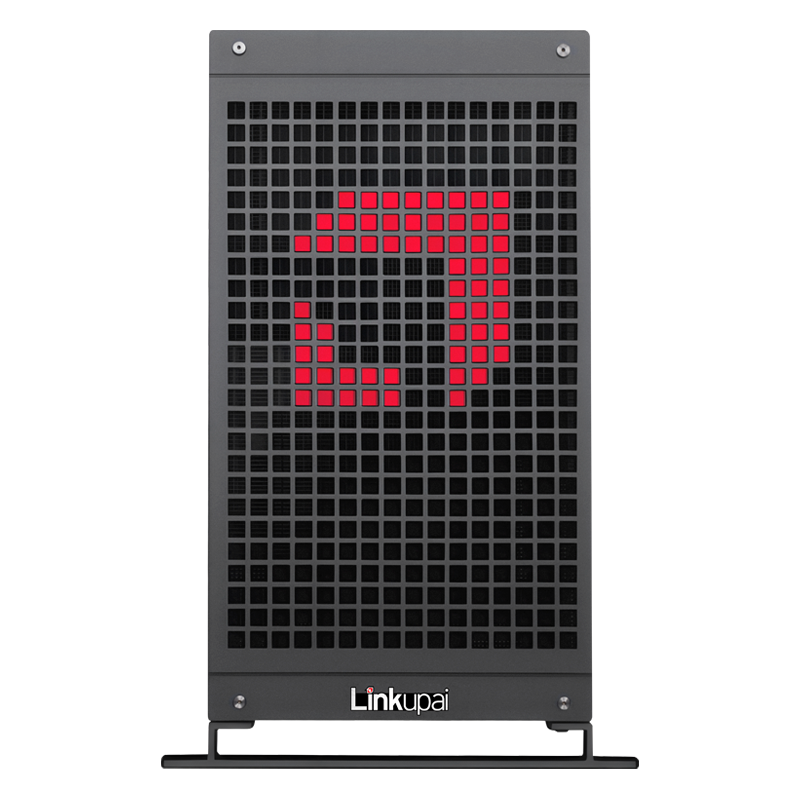

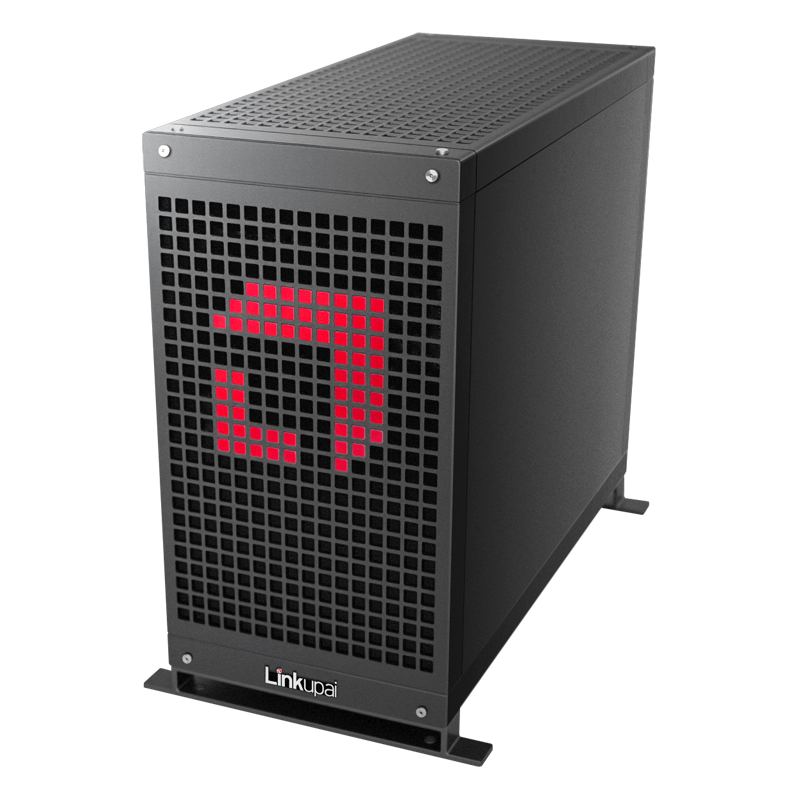

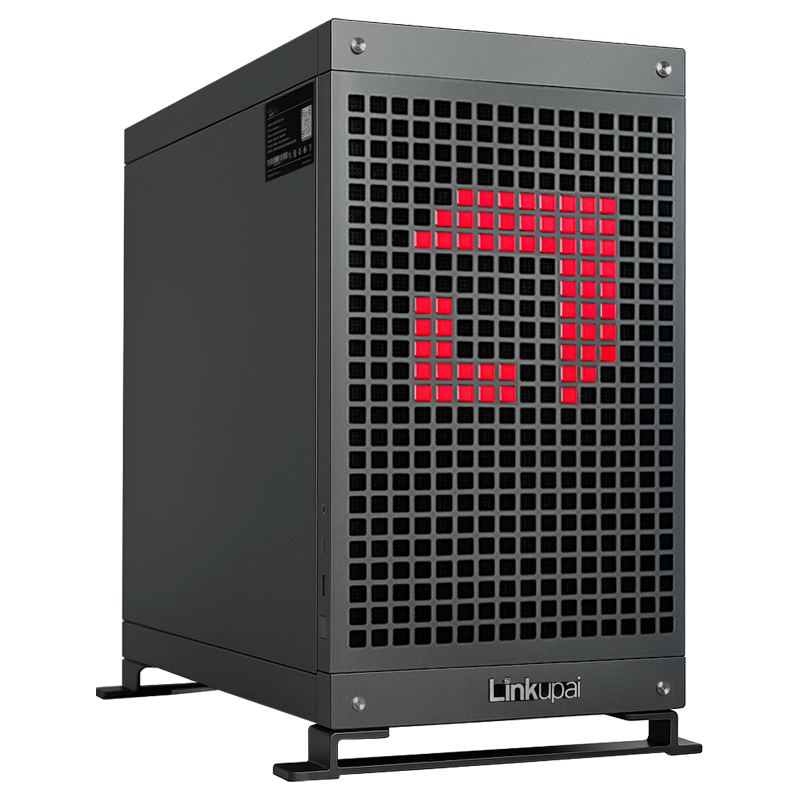

HI5228 Ascend AI all-in-one machine
Research on artificial intelligence in scientific research scenarios, providing high-performance AI computing platforms for research institutions, supporting algorithm research and model training in machine learning, deep learning, and other fields
Function Summary
Kunpeng 920S module
ARM architecture ecosystem, load optimization for scenarios
Ascend Atlas 300l Duo 96G * 2
A single card can provide 280 TOPS INT8 computing power
National Production Plan Design
Autonomous and controllable, stable supply

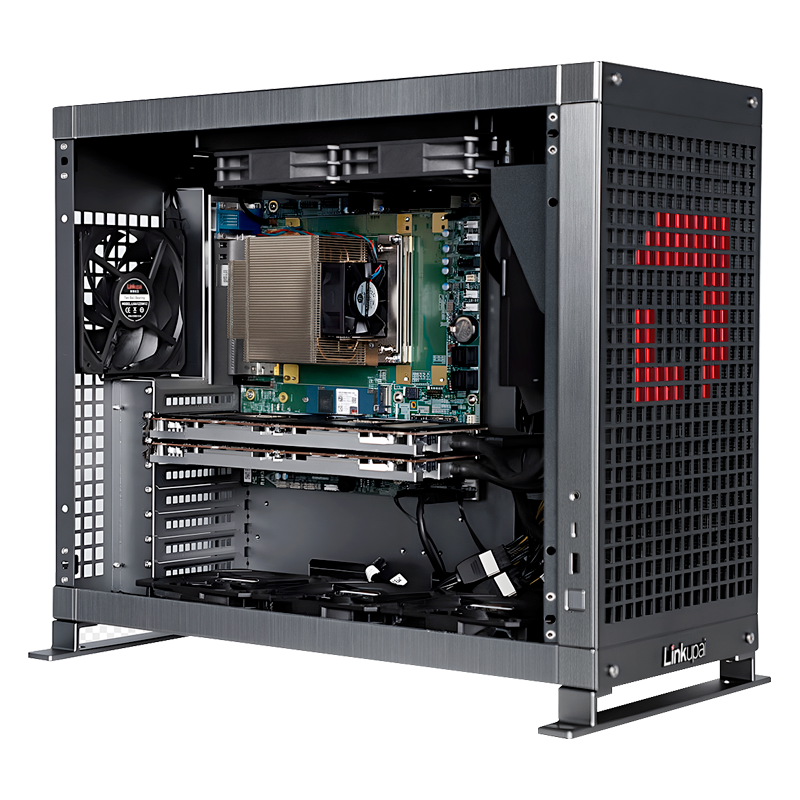

GPU liquid cooling heat dissipation design
Lower noise, stronger heat dissipation
Specifications
| Model | HI5228 |
| Compatibility | Supports Atlas 300I Duo, Atlas 300I Pro, Atlas 300V Pr |
| PCIe slot |
It can support up to 3 PCIE Gen4 slots, all of which adopt X16 slot size, but the signal bit width varies, Slot 1/2 is an X8 signal, SLOT3 is an X16 signal, where slot 1 is mutually exclusive with the SAS signals of the two Minisas HD onboard; |
| Operating system | OpenEuler，Ubuntu， Galaxy Kirin, UniTrust UOS, and other operating system support information, please contact Shuju Hongxin Technology Engineering |
| USB port | Front 1 x USB 3.0, rear 2 x USB 3.0 |
| Video | 1×VGA |
| Network port I/O |
Onboard 2 Gigabit RJ45 electrical ports, 4 10G SFP+optical ports Customized version: Onboard with a 4-channel XGE interface (MCIO), capable of blocking dual gigabit and expanding with 4 1/10/25G network ports |
| BMC interface | Onboard Huawei Hi1711 BMC, supporting IPMI, KVM, virtual media and other functions, with rear I/O supporting an RJ45 1Gbps dedicated management network port |
| Environment | Working temperature: 5 º C-45 º C Storage temperature: -40 º C-65 º C |
| Size | 502 x 226 x 436 m |
| Power supply | 1250W 80plus Gold Medal Module Power Supply |
Resource Download
Sort
Name
File format
Size
Operation
01
红芯昇腾AI一体机 HI5228
1.59 KB
